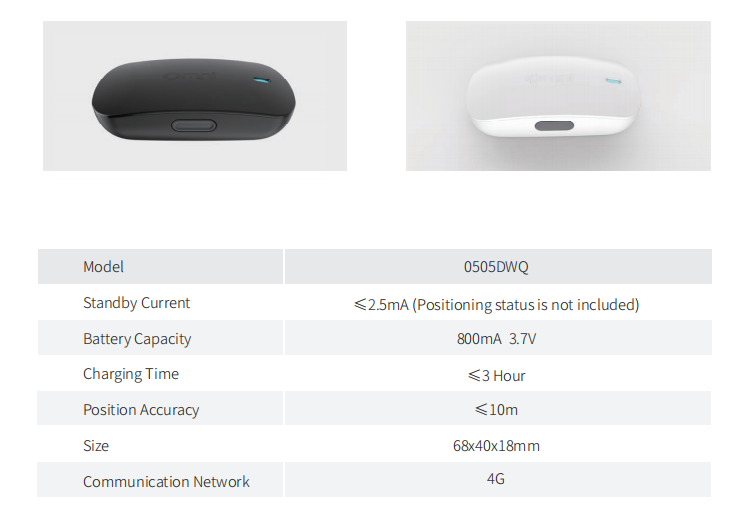

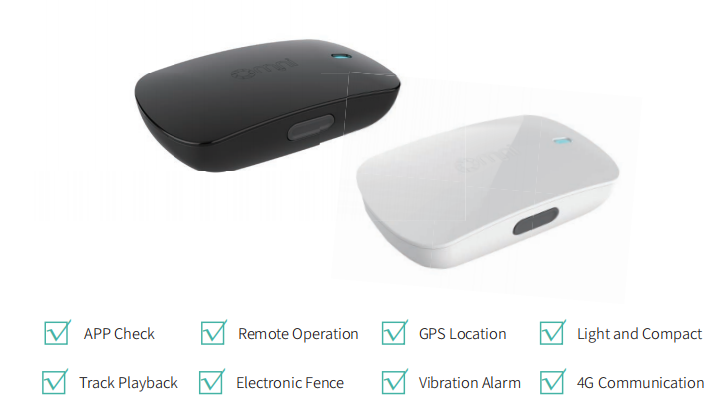

O505DWQ 4G Gps Tracker for Human
This GPS locator is designed as a GPS position terminal for vehicles; the terminal integrates functions like 4G network remote control, GPS real time position, Bluetooth communication, vibration detection, anti-theft alarming, etc.. |`-+#$&*|The GPS Tra
|
Communication with cloud server |
MQTT |
|
Movement detection |
Triaxial accelerometer |
|
Working voltage |
5VDC |
|
Standby current |
≦2.5mA |
|
Built-in battery |
3.7V/800mAH |
|
Waterproof& dustproof |
IP67 |
|
Outside shell material |
PC+10%GF |
|
Working temperature |
-20℃～ +60℃ |
|
Storage temperature |
-40℃～+80℃ |
|
Working humidity |
10～93RH |
|
SIM card |
NANO-SIM |
|
Dimension of the device |
LxWxH: 68x40x18mm |
Omni 4G vehicle GPS tracking Device
Function list
|
Function list |
Function description |
|
Location |
Support single positioning and continuous positioning mode, can report the current vehicle position information regularly. Support GPS,GLONASS,BeiDou, Galileo，WIFI assistant location. |
|
Network communication |
Through the command of the server, the position, status of the vehicle can be obtained remotely, and can control the vehicle. |
|
Bluetooth |
Can realize real-time setting location parameter through bluetooth communication, and upgrade the system through bluetooth. |
|
OTA upgrade |
The device can support upgrading firmware and setting parameters remotely through server. |
|
Vibration detection |
There is acceleration sensor inside the device, and can detect abnormal vibration and upload the info to server. |
|
Falling to ground detection |
When the vehicle falls on the ground, the device will upload the info to the server. |
|
Failure report |
The failure of vehicle can be uploaded to server through IOT (UART communication, need support of the vehicle controller.) |
|
Communication port（optional） |
UART, Level control |
GPS performance
|
Location |
Support GPS,GLONASS,BeiDou, Galileo， WIFI assistant location system |
|
Sensitivity |
-158dBm |
|
Starting time |
Cold startup less than 120seconds, Warm startup less than 30seconds, (Open area, weather is sunny without shade, including coordination optimization) |
|
Location precision |
≤10meters（Open area, weather is sunny without shade.) |
|
Location condition |
Search satellites numbers≥4 satellites and signal noise over 30dB |
Shenzhen Omni Intelligent Technology Co., Ltd. is a national high-tech enterprise focusing on the development and application of core technologies of IoT (Internet of Things), including high-precision detection sensors and algorithms, wireless communication networking, GPS/BDS positioning, remote control and data acquisition, engineering development of core components of agricultural robots, related software and hardware, APP and cloud service system development, and AI big data analysis applications
