Shifting growth patterns of sharing electric bike could have big consequences for ride sharing services of sharing economics.No manual arragement.No keys for the electric bike lock.
The electric bike lock becomes a popular smart gps device for GPS transmission of ebike-sharing fleet.Today we will talk about components and development potential of electric bike lock.

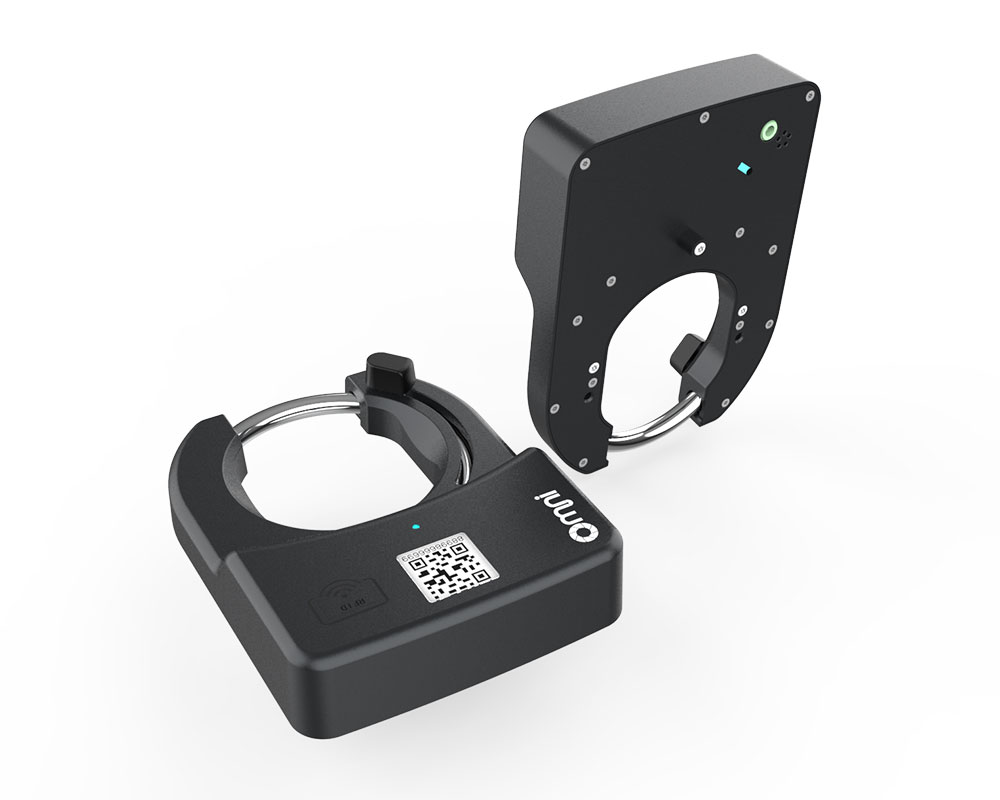

1,The internal hardware structure of the electric bike lock
1) Lock ring
The lock ring is in the shape of a semi-circle and is used to lock the tires.There is a catch on the deadbolt.Similar to old mechanical locks.
2) The ring base
There is a notch on the lock ring,which is used to lock the lock ring.It is used in conjunction with the latch.The card bolt is stuck in the bayonet to ensure that the deadbolt cannot move,which can lock the wheel of ebikes correctly.
3) Lock latch
The clip is connected together with a spring 2 and a motor drive module.
4) Spring
It is connected with the lock ring and is used to unlock the lock by pulling the lock ring.When there is nothing stuck in the bayonet of the lock ring,use the pulling force of spring 1 to pull out the lock ring,and the lock ring is completely retracted into the inside of the lock.
5) Motor and driving device
Composed of a motor plus peripheral gears and other devices,it only works at the moment of unlocking to save power.When the motor works,the latch is pulled out from the bayonet through the gear,and the spring 2 is compressed at the same time.
2,How to unlock the electric bike lock
At present,it is to use GPRS+Bluetooth to unlock the electric bike lock and this unlocking method is the mainstream unlocking method of sharing electric bike generally.The server only needs to use traffic to connect to the user's mobile phone,and then the mobile phone's Bluetooth sends the unlock command.At the same time,it solves the problems of slow unlocking time,instability,and power consumption.There is no need to rely on the signal strength of the module in the ebike lock,and the stability is greatly improved.
3.Development prospects of electric bike lock
It is not difficult to find that the unlocking method of the smart lock on sharing electric bike has undergone three optimizations since it was first launched.From SMS unlocking to GPRS unlocking to GPRS+Bluetooth unlocking,and finally to the current Narrowband Internet of Things(NB-IoT)unlocking.
Narrowband Internet of Things(NB-IoT)is an emerging technology in the IoT field.With the gradual maturity of the industry chain,especially the chip technology,and the extensive support of operators,it has gained more and more attention in the field of sharing electric bike.Much consensus.Although the application of NB-IoT on ebikes is not very extensive,it is also beginning to be practical in some rent ebikes.
With the help of the scale effect and fast flow capacity of sharing electric bike,the industrial chain of NB-IoT IoT technology will continue to be mature,and the related manufacturing costs will be further reduced,laying the foundation for further commercialization of the Internet of Things.The ebike sharing industry is the first to combine the dockless sharing model with the Internet of Things,using electric bikes as the entrance of services and data.It has successfully made sharing electric bike the first breakthrough in the"Internet of Everything",and the space of future development is immeasurable.
