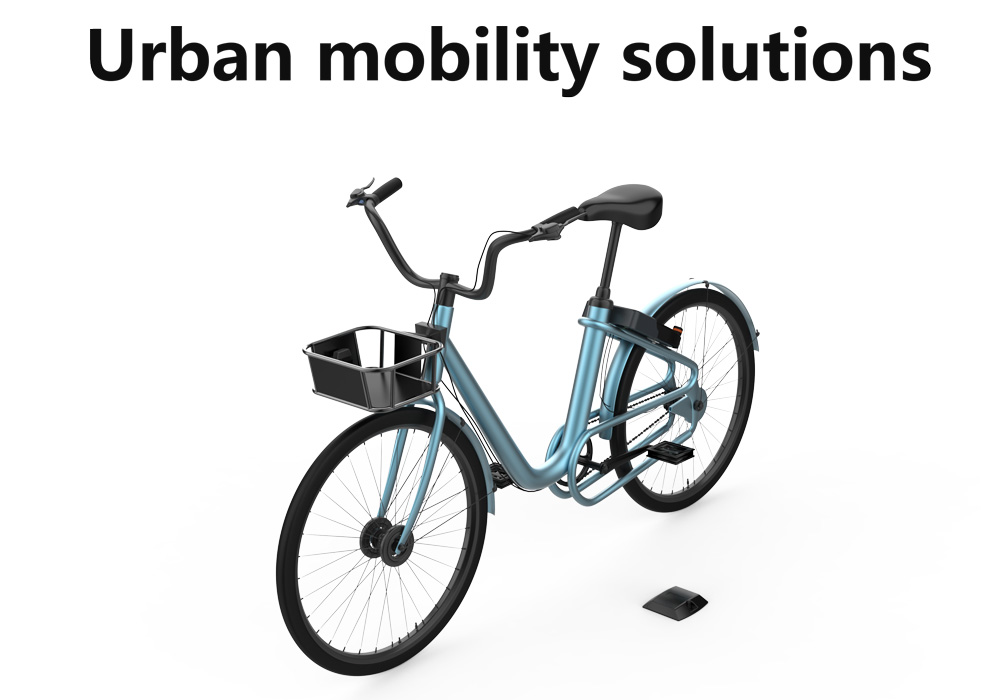

M524DD Parking Beacon Standard Parking For Sharing Bike
The BLE Bluetooth beacon IOT device works with Omni smart IOT device, share bike, sharing scooters and rental ebike can achieve fixed parking. Reduce the operating costs of shared bicycle projects.
Fixed standard parking
Built in high precision real time clock, broadcast content encryption
Built in 5400mah battery, ultra-long standby
IP67 waterproof, dustproof, shockproof, explosion-proof and corrosion-resistant
Support OTA update
Size: 102mm*98mm*20mm
Dockless Bike Sharing Business Standard Parking Parking Beacon IoT Device
M524DD parking beacon is a Bluetooth electronic tag for fixed parking. Works with Omni smart IoT device,
shared bikes, sharing scooters and rental ebike can achieve fixed parking. Solve indiscriminate parking in the
shared business.
| Technical Specification | |||
| Working current: | <60uA | Battery: | 5400mah/ 3.6V Lithium battery |
| Environment temperature: | -20~+70℃ | Waterproof: | IP 67 |
| Bluetooths: | BLE 5.0 | Transmitted power: | <4dBm |
| Receiving sensitivity: | -94dB | Shell material: | Engineering Plastics |
| Broadcast interval: | @500ms | Size: | 102*98*20mm |
| Install way: | M6 screw *2 | Product Name: | Smart sharing business bluetooth beacon |
The M524DD Parking beacon IoT device built in high capacity lithium-ion battery, long battery life. With
solid aluminum alloy shell design, IP67 protection level. The device can work stably and reliably in any
harsh outdoor environment, Not maintenance required. Reduce the operating costs of shared bicycle
projects. The device built in high-precision real-time clock, combined with the Omni encryption algorithm,
broadcast content changes in real time. So that cannot be maliciously imitated by any people.
Matching IoT devices recommended as below:
1, D128 IoT devices for escooter sharing projects
2, M136 IoT devices for sharing bikes and ebikes
